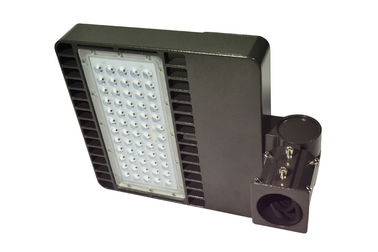

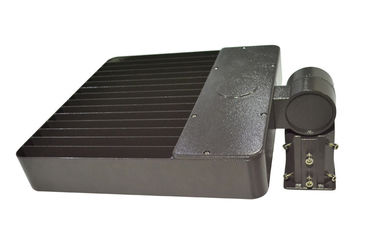

130LM/W LED Parking Lot Lighting IP66 80Watt For Car Parking shoe box lighting

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: MF
সাক্ষ্যদান: CE,RoHS,TUV,FCC, DLC
Model Number: MF-P080
প্রদান:
Minimum Order Quantity: 50pcs
মূল্য: Negotiable
Packaging Details: 590*395*115mm/pcs, G.W:7.8Kg
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 10,000pcs/Month

বিস্তারিত তথ্য

Item No:: MF-P080 Power:: 80W
Input voltage:: AC85-305V LED Chip:: Cree XTE/ SAMSUNG 351B
LED Driver:: Meanwell Efficiency: 130lm/w
CRI:: 80+ IP Grade:: IP65
CCT: 3000K,4000K , 5000K Function: Dimmable/Photocell sensor
Beam Angle: 90°, 120°, 90*120°, 85*135° Mounting: Pole/wall Mount As Option
লক্ষণীয় করা:

led parking lot light

,

parking lot led lights

পণ্যের বর্ণনা



 PF> 0.98 130LM/W LED Parking Lot Lighting IP66 80Watt For Exterior Car Parking




 Description:

Our this module design led parking lot lighting is allocated with top grade led chip of Cree XTE /SAMSUNG 351B and HLG series Meanwell driver, the whole lamp efficiency can up to 130lm/w, PF> 0.98,  which guarentees a working lifetime over 100,000h hours and a warranty of 5 years.



this parking lights with IP65 waterproof, 90°, 120°, 90*120°, 85*135° different beam angle, Grey/ Black/Silver body color for choose, Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.6 different kinds of bracket avaiable for pole, wall...etc installation.



Specifications:

Item

MF-P080

Input voltage

85-305Vac  50Hz/60Hz

LED Power

80W

Rated Power

85W

Delivered Flux(Tj80°c)

10400lm

IP Rating

IP65

Luminous Efficiency

130LM/W

LED Qty: 36pcs
Pole Diameter(mm) Dia60mm / Dia76mm

Color temperature

3000K / 4000K / 5000K

LED Chip

Cree XTE/ SAMSUNG 351B

LED Driver

Meanwell

Color Rendering Index

80+

Power Factor

>0.98

Lifespan

≥100,000hrs

Operation Environment

Temperature:-40°C~50°C / Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

343(L)*432(W)*176(H)

Packing Size(mm)

590(L)*395(W)*115(H)/pcs

Weight

N.W:6.8Kg G.W:8.5kg

Certificate

CE/RoHS/TUV/FCC/DLC

Warranty Period

5 years



Competitive Advantage:

1. Light Source: We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip options, efficiency acheives 130LM/W.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%.
3. Waterproof Grade: IP65.

4. Beam Angle: 90°, 120°, 90*120°, 85*135°.

5. Warranty: Five years.

6. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.

7. Body color : Grey/ Black/Silver.

8. 6 different kinds of bracket avaiable for pole, wall...etc installation.

9. Built-in Meanwell driver, meet IEC standard.

10. Hollow out heat sink design make the lamp lighter and good heat dissipation




Light Distribution Curve:

130LM/W LED Parking Lot Lighting IP66 80Watt For Car Parking shoe box lighting 0


Dimension:

130LM/W LED Parking Lot Lighting IP66 80Watt For Car Parking shoe box lighting 1


Packaging:

130LM/W LED Parking Lot Lighting IP66 80Watt For Car Parking shoe box lighting 2
