IP20 Panic Emergency Powerpack Emergency Light Kit LED Emergency Driver for Triproof Light Down Light Ceiling Light Highbaylight Panel Light

পণ্যের বর্ণনা

Factory Price IP20 Panic Emergency Powerpack Emergency Light Kit LED Emergency Driver For Triproof Light Down Light Ceiling Light HighbayLight Panel Light

Product description

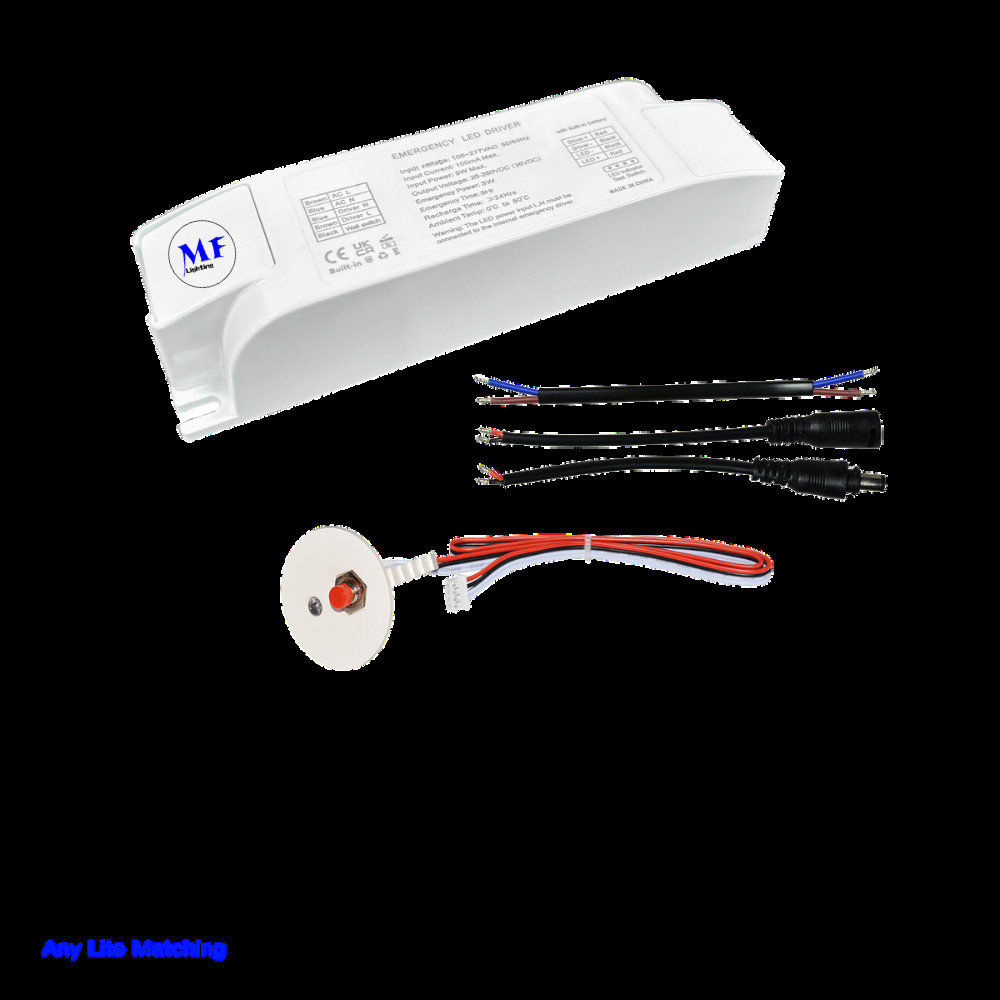

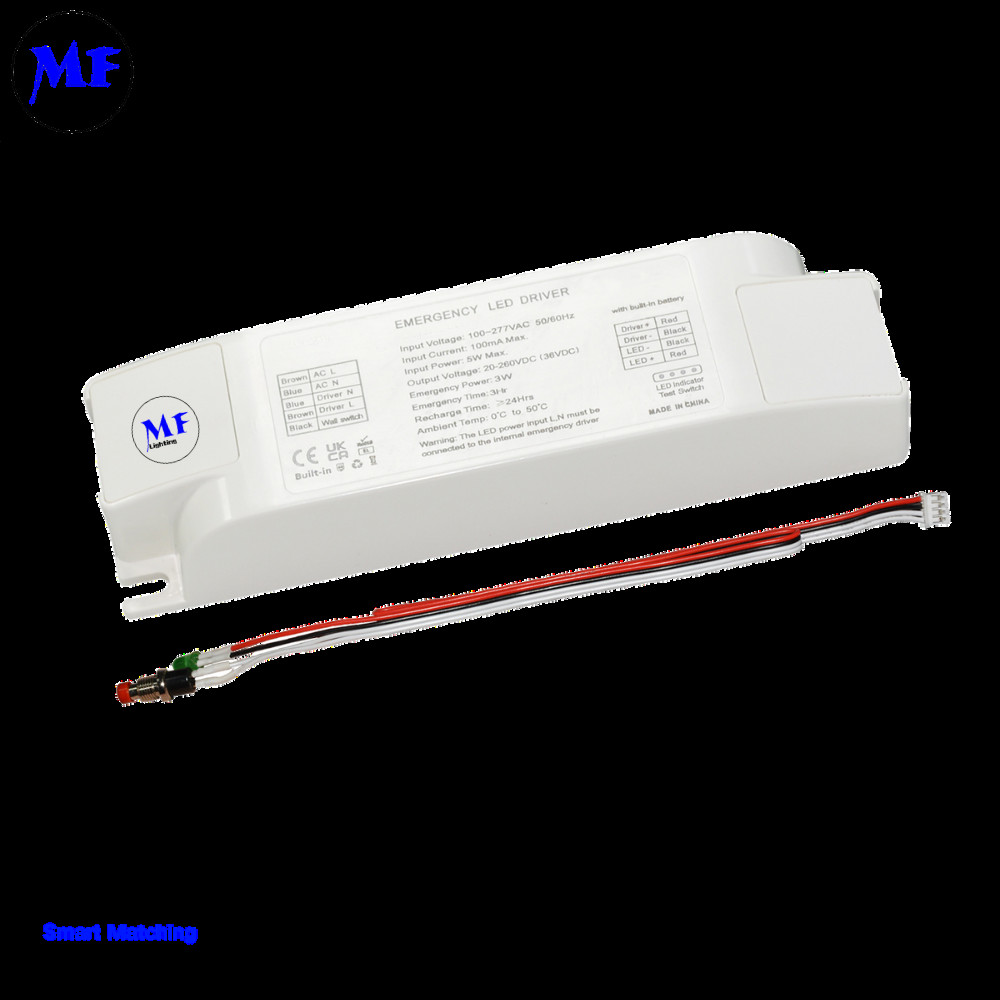

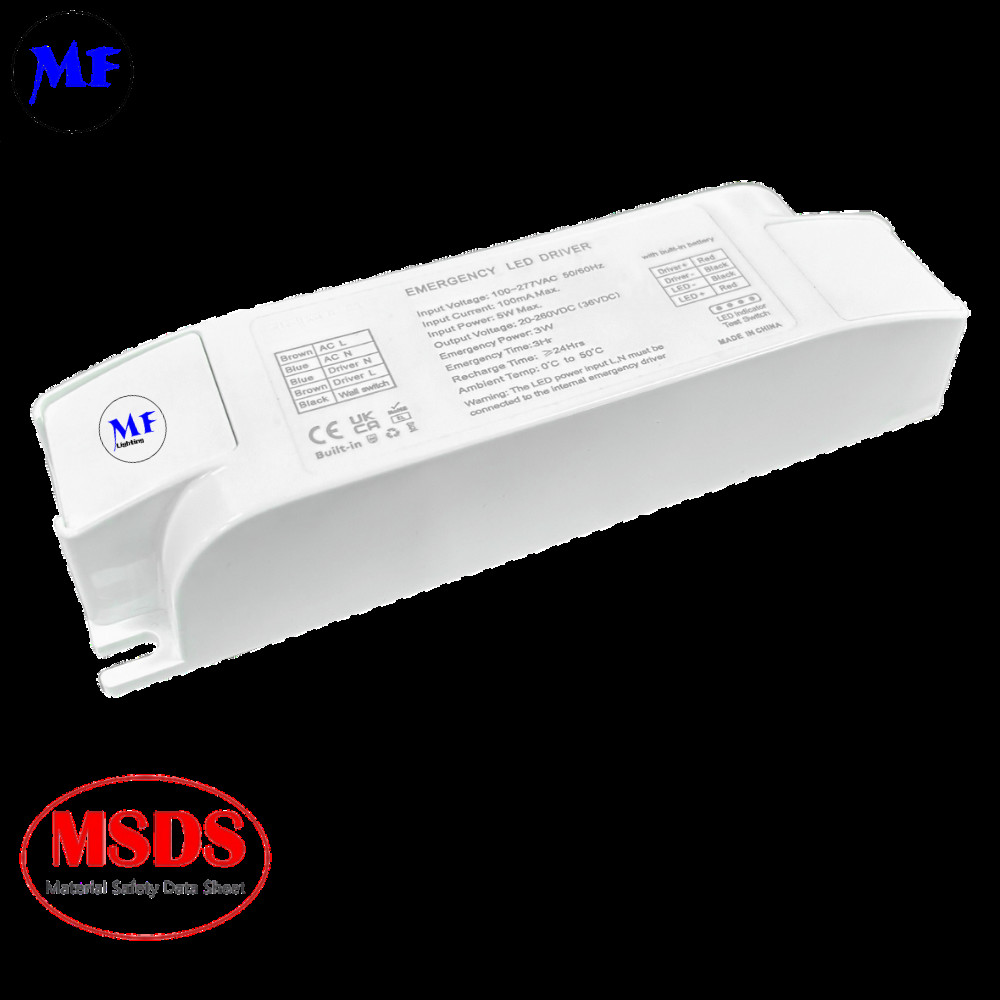

The MF-188C is an LED emergency driver designed for LED fixtures with external drivers. It features self-detection, constant power emergency output, and a built-in Li-ion battery. Key protections include overcharge, over-discharge, overload, and short-circuit protection. The device has a test switch and LED indicator, with zero static current when powered off. It supports input voltages of 100-277V AC, offers emergency outputs of 3W, 5W, or 8W, and complies with IEC/EN standards. Emergency durations range from 1.5 to 3 hours, depending on battery capacity. The LED indicator shows charging status (green) or faults (red flashes). A quarterly self-test ensures reliability. Installation requires avoiding heat sources and periodic recharging if stored long-term. Warranty: 3 years.

descriptions:

​self-detect
constant power emergency output
Suits for LED fitting with external LED driver
With built-in battery
With multi-protection function;
battery overcharge protection;
battery over-discharge protection;
output overload protection;
short-circuit protection.
Accessary test switch and LED indicator
In the state of the power off, to connect with the battery static current at the battery terminal is 0uA

​

Input voltage	100-277 Vac, 50/60Hz
Input current	0.003A Max. @230Vac
Input wattage	<5.0W
Power factor	≥0.5 @230 Vac
Battery charging	350mA Max.
Battery charging time	>24h
Battery Data	Li-ion 2.0Ah 3.7V
Discharging time&Power	3W 1.5H
Emergency output Voltage	3W: 15-85VDC (Max. 90VDC)
Storage Temperature	-20-40ºC
Electric Strength	2000Vac, 5mA (input to output)
IP Rating	IP 20
Maximum shell temperature	75ºC
Warranty	3 Years
Relevant standard	IEC 61347-2-7 / IEC 61347-1 / EN55015

​

​Wiring Diagram

​

Measure

LED and test button status

LED INDICATOR

Green breathing pattern: charging modeGreen stable: battery fully charged
Red flashing: failure as below
Red flashing once per second: Battery is not connected / Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
Green flashing: Emergency status one per second
TEST BUTTON
1: 0S < Key ≤ 2S, Enter a simulated state of emergency, the green indicator blinks once every second, keep emergency status for 10±1 seconds and back to normal status
2: In simulated emergency situations, Short press once to exit and return to the normal charging state
3: 0S < Key ≤ 1S, In the emergency state, the emergency state is turned off.
QUARTERLY SELF-TEST
When emergency driver is on power, every 180 days ± 1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status.

​Installation Instructions

1: If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided
2: When installing and using it, please keep it away from heat sources and only use it within a certain working temperature range.
3: Should be stored in a cool, dry environment.
4: After prolonged storage, recharge at least once every 6 months as needed.
5: Emergency driver testing must be longer than 1min, don't press the testing button frequently.

​Application

Application:

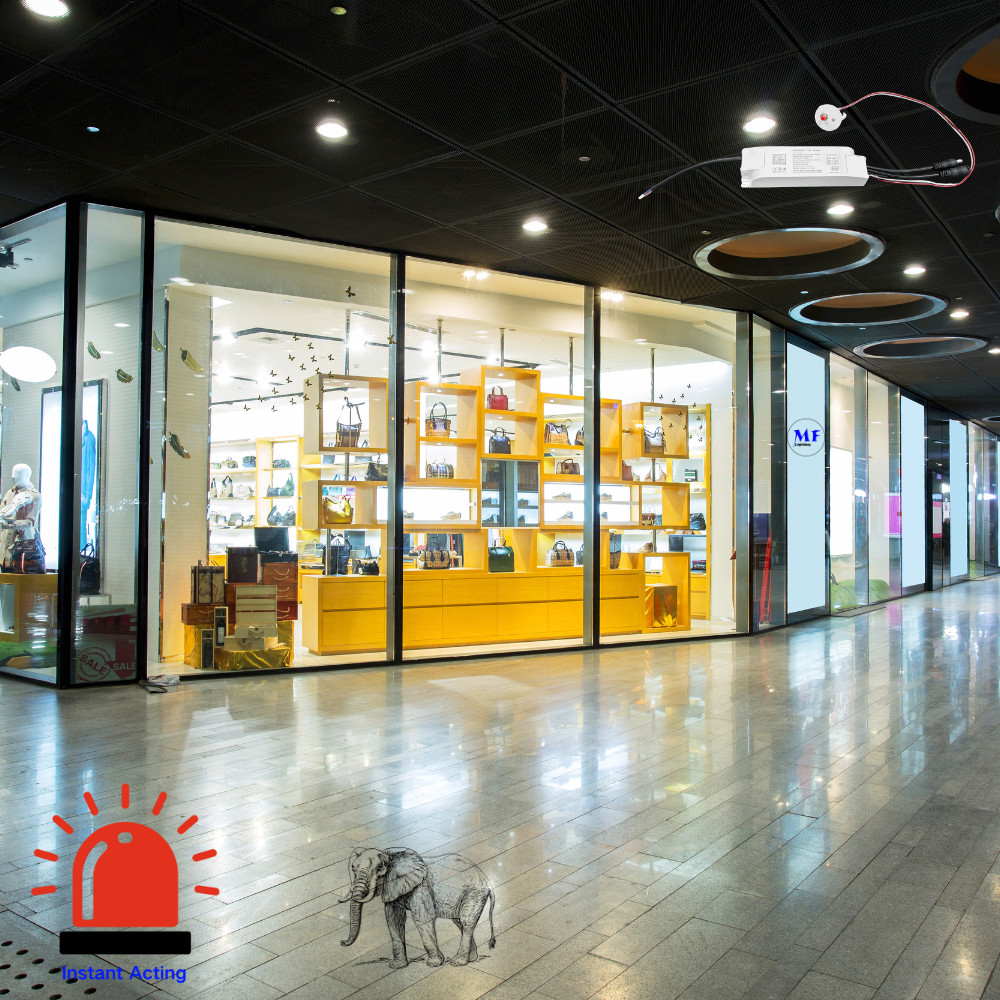

school,hospital,subway,train station,shoppingmall,supermarket,airport,office, factory,hotel,basement,parking lot,public place
